Strut Profile PG45 45R90

Strut Profile PG45 featuring 10mm T-slot is designed for constructing Heavy weight assemblies such as machine structure frame and workshop partition etc.

Description	Mass (kg/m)	Part No

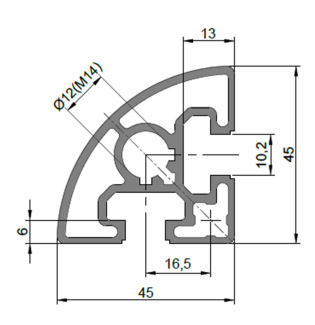

Strut Profile PG45 45X45 R90 2 slots (SW )	1.395	1.11.45.045045.R90.02H.SW
