Base Plate

To support strut profile mounted on the floor or between the platforms. Expansion bolts chocked into the floor can offer a high stability.
Material & colour: Aluminium, spray coating, silver

Description	Mass (g)	Part No

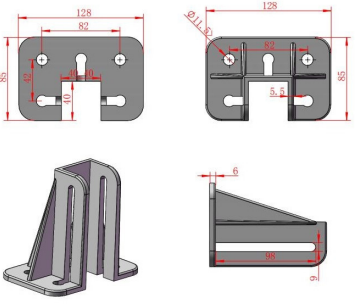

Base Plate 4040 (SW)	805	5.12.40.40.SW

Description	Mass (g)	Part No

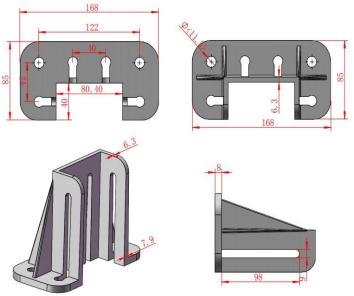

Base Plate 4080 (SW)	975	5.12.40.80.SW
